上海浦东X波段双线偏振雷达衰减订正效果分析

施红，顾松强，黄兴友，林莺，罗桓

(上海市浦东新区气象局,上海 200135；南京信息工程大学,南京 210044)

Analysis of Attenuation Correction to an X-Band Dual-Polarization Doppler Weather Radar at Pudong, Shanghai

SHI Hong，GU Songqiang，HUANG Xingyou，LIN Ying，LUO Huan

(Pudong Meteorological Office of Shanghai, Shanghai 200135； Nanjing University of Information Science and Technology, Nanjing 210044)

摘要

图/表

参考文献

相似文献

本文已被：浏览 162次下载 643次
投稿时间：2021-11-23 修订日期：2022-05-26

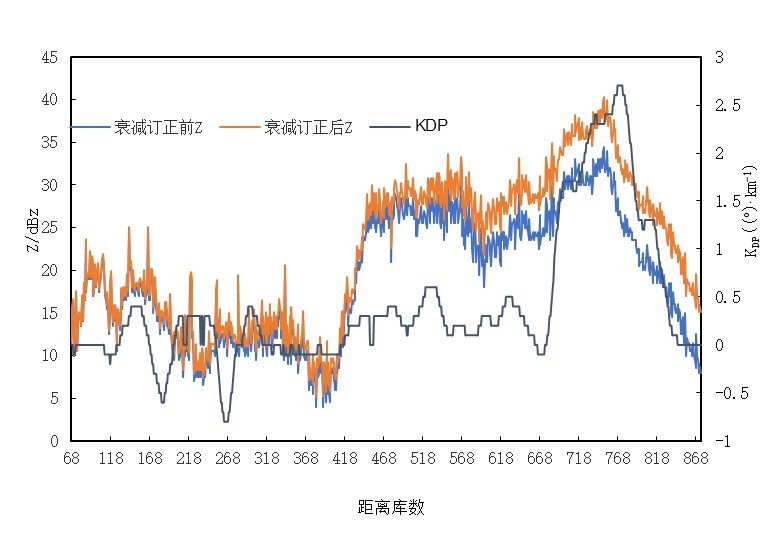

中文摘要: 降水对X波段雷达电磁波的显著衰减，造成了回波弱化现象，带来了定量应用不准确的问题。为了减轻降水衰减对雷达数据的影响，用Z-KDP（反射率因子-差分传播相位常数）方法对上海浦东气象局的X波段雷达反射率因子进行订正试验，具体方案为：当KDP≥ 0.3°·km-1时，用KDP的值进行订正；当KDP＜0.3°·km-1时，使用雨滴谱拟合A（衰减系数）和Z间的经验公式做衰减订正。选取对流性降水个例（2020年9月17日）和稳定性降水个例（2021年2月26日）进行衰减订正试验，经过衰减订正和系统偏差订正后，X波段雷达反射率因子与S波段雷达的反射率因子大小相当，回波形态相似，验证了该订正方法适用于对流性降水和稳定性降水的X波段雷达反射率因子的衰减订正。

中文关键词: X波段双线偏振雷达，衰减订正，反射率因子

Abstract:Rainfall attenuation to X-band weather radar measurement is significant, and can lead to the weakening of radar reflectivity factor and inaccuracy in quantitative applications. By using the Z-K〖KG-*4〗DP correction method, the data collected by the X-band dual-polarization Doppler weather radar at Pudong, Shanghai were tested. The specific scheme is as follows. When KDP≥0.3°·km-1, the value of KDP is used to correct the attenuation; when KDP < 0.3°·km-1, the empirical formula between A and Z is used to correct the attenuation. The convective precipitation case (17 September 2020) and the stable precipitation case (26 February 2021) were selected for the test. After attenuation correction and system bias correction, the results show that both the value and the spatial distribution of the X-band’s radar reflectivity factor are close to that of the S-band weather radar. Such Z-KDP method is effective to correct the attenuation from both convective rainfall and stable rainfall.

keywords: X-band dual-polarization radar, attenuation correction, reflectivity factor

文章编号： 中图分类号： 文献标志码：

基金项目:国家重点研发计划（2018YFC1506102）、中国航空工业集团公司雷华电子技术研究所项目(MJ-2018-S-28)共同资助

作者	单位
施红	上海市浦东新区气象局,上海 200135
顾松强	上海市浦东新区气象局,上海 200135
黄兴友	南京信息工程大学,南京 210044
林莺	上海市浦东新区气象局,上海 200135
罗桓	上海市浦东新区气象局,上海 200135

Author Name	Affiliation
SHI Hong	Pudong Meteorological Office of Shanghai, Shanghai 200135
GU Songqiang	Pudong Meteorological Office of Shanghai, Shanghai 200135
HUANG Xingyou	Nanjing University of Information Science and Technology, Nanjing 210044
LIN Ying	Pudong Meteorological Office of Shanghai, Shanghai 200135
LUO Huan	Pudong Meteorological Office of Shanghai, Shanghai 200135

引用文本：
施红,顾松强,黄兴友,林莺,罗桓,2023.上海浦东X波段双线偏振雷达衰减订正效果分析[J].气象,49(4):487-494.
SHI Hong,GU Songqiang,HUANG Xingyou,LIN Ying,LUO Huan,2023.Analysis of Attenuation Correction to an X-Band Dual-Polarization Doppler Weather Radar at Pudong, Shanghai[J].Meteor Mon,49(4):487-494.
