FY-4A/4B温湿廓线检验及在贵州冰雹过程中的应用分析
李力,李彦霖,杨静,周永水,周明飞
(贵州省气象台,贵阳 550002)
Verification of FY-4A/4B Temperature and Humidity Profiles and Its Application in the Hail Process in Guizhou
LI Li,LI Yanlin,YANG Jing,ZHOU Yongshui,ZHOU Mingfei
(Guizhou Meteorological Observatory, Guiyang 550002)
摘要
图/表
参考文献
相似文献
本文已被:浏览 7次   下载 90
投稿时间:2024-08-13    修订日期:2025-06-03

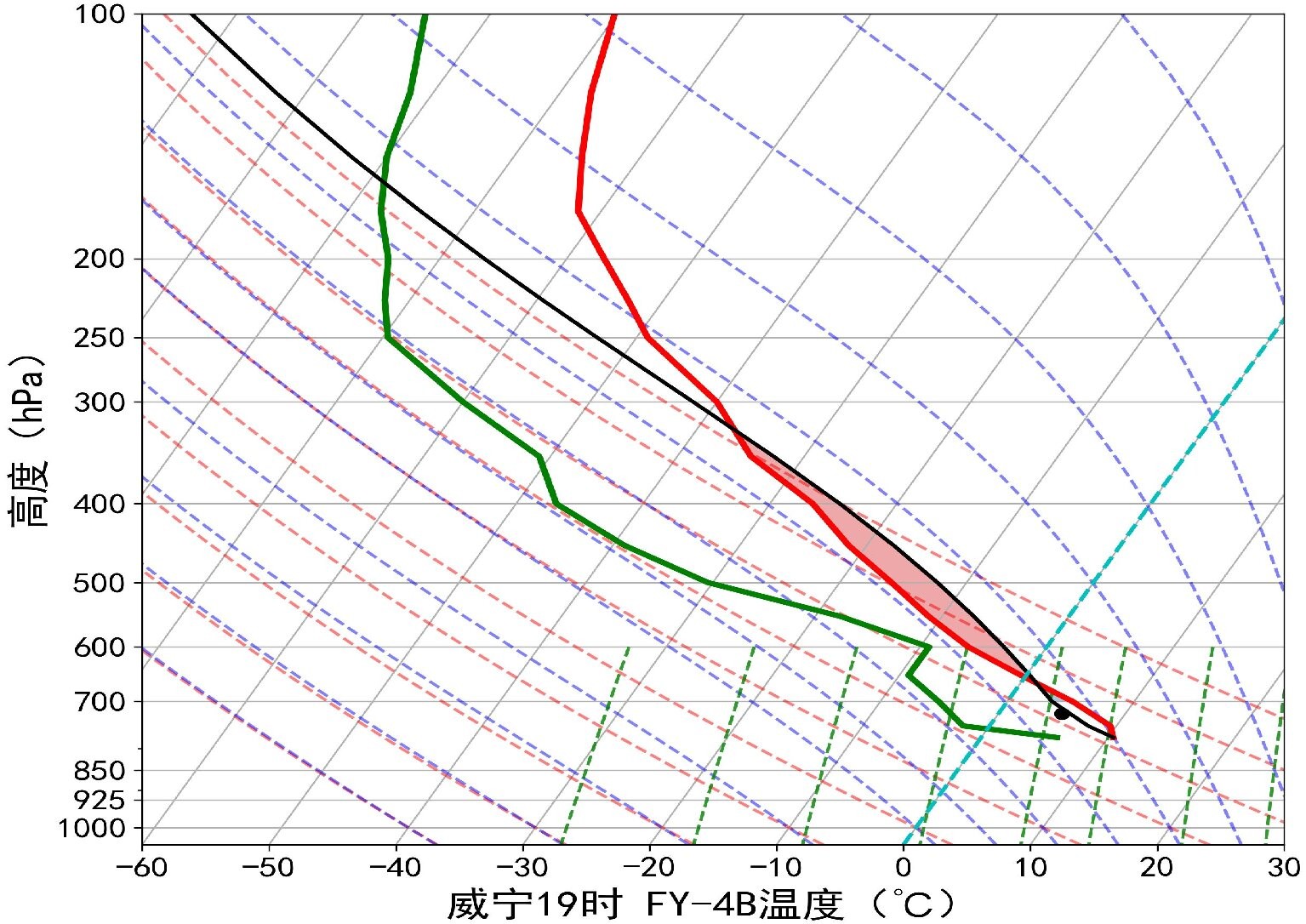

中文摘要: 为评估FY-4A/4B 静止轨道干涉式红外探测仪(GIIRS)反演的温湿廓线产品在贵州的精度和业务应用效果,以贵阳、威宁两站实况探空和ERA5再分析资料为基准,对FY-4A温度廓线、FY-4B温湿廓线进行了检验。结果表明:实际业务中可以考虑只剔除不可用数据,而保留质量最优和较好数据,最大程度保留温湿廓线的完整性。云对GIIRS探测温湿廓线影响较大,有云时FY-4A温度均方根误差比无云和云边界时分别增加1.19℃、0.96℃,FY-4B温度分别增加1.52℃、1.21℃,比湿分别增加1.28 g·kg-1、0.95 g·kg-1,且有云时不同高度的数据分布离散度增大。与不同季节贵阳和威宁实况探空对比表明,卫星反演的温湿廓线能较好体现贵阳和威宁由于地形不同而表现出的不同季节大气层结特征。选取2023年贵州三次区域性冰雹过程评估FY-4A/4B GIIRS产品应用效果,结果表明GIIRS产品与贵阳和威宁两站的实况探空较为一致,高时空分辨率的温湿廓线有助于追踪大气层结变化,冰雹发生前“上干下湿”的不稳定度增加,对冰雹天气的潜势预报有较强指示意义。但对近地层大气温湿反演误差较大,导致对流有效位能低估、低层探空形态改变,使用地面气象观测站2 m温度和露点温度订正后,可以显示出较大的对流有效位能,以及有利于雷暴大风发生的探空结构,对预报员进行分类强对流短时临近预报有较好的参考作用。
Abstract:To evaluate the accuracy and operational applicability of FY-4A/4B GIIRS-retrieved temperature and humidity profiles in Guizhou, the FY-4A temperature profile and FY-4B temperature and humidity profiles are verified against sounding observations at Guiyang and Weining stations and ERA5 reanalysis data. The results indicate that, in practical operations, it is considered that only the unusable data can be eliminated, while the data with the best and better quality can be retained so as to maximize the integrity of the temperature and humidity profiles. Clouds significantly degrade GIIRS retrieval performance. Under cloudy conditions, the root mean square error of FY-4A temperature increases by 1.19℃ (clear sky) and 0.96℃ (cloud edge), FY-4B temperature increases by 1.52℃ (clear sky) and 1.21℃ (cloud edge), and specific humidity increases by 1.28 g·kg-1 (clear sky) and 0.95 g·kg-1 (cloud edge), respectively. Moreover, cloud cover also amplifies vertical data dispersion. Seasonal comparisons between sounding and satellite profiles demonstrate that FY-4A/4B captures terrain-induced differences in atmospheric stratification between Guiyang and Weining. For three regional hail events in 2023, GIIRS products agree well with sounding observations. The high-resolution profiles reveal pre-hail instability, which is “upper dry and lower wet”, offering valuable forecast indicators. However, the near-surface layer retrieval errors lead to the underestimation of convective available potential energy (CAPE) and distort low-level sounding structures. After the surface 2 m temperature and dew point temperature corrections, a large CAPE and a sounding structure conducive to the occurrence of thunderstorms and strong winds are displayed. This is a good support for the short-time forecasting and nowcasting of severe convections.
文章编号:     中图分类号:    文献标志码:
基金项目:贵州气象局省市联合基金(SS-KF[2024]14号)、中国气象局创新发展专项(CXFZ2023J029)、贵州省科技厅项目(黔科合支撑[2023]一般236)和风云卫星先行计划-天气预报应用专项(FY-APP-ZX-2023.01)共同资助
引用文本:
李力,李彦霖,杨静,周永水,周明飞,2025.FY-4A/4B温湿廓线检验及在贵州冰雹过程中的应用分析[J].气象,51(8):964-977.
LI Li,LI Yanlin,YANG Jing,ZHOU Yongshui,ZHOU Mingfei,2025.Verification of FY-4A/4B Temperature and Humidity Profiles and Its Application in the Hail Process in Guizhou[J].Meteor Mon,51(8):964-977.
